Construction & Panel

Sound absorption ceiling, with open vision, ventilation is better, and the level is more distinct, experiencing a modern decoration style.

Because the appearance structure is more beautiful, with clear and smooth lines, it can be matched with dozens of standard colors, and can be combined into a variety of decorative styles and patterns, which can give people a different decoration effect.

Applicable place：

• Opera House

• Recording studio

• The Studio

• Sound test room

• Television station

• Office of Commerce

• Multi-function hall

• Meeting room

• Studio of broadcasting

• Concert hall

• The Great Hall

• The Gymnasium

• Subway station

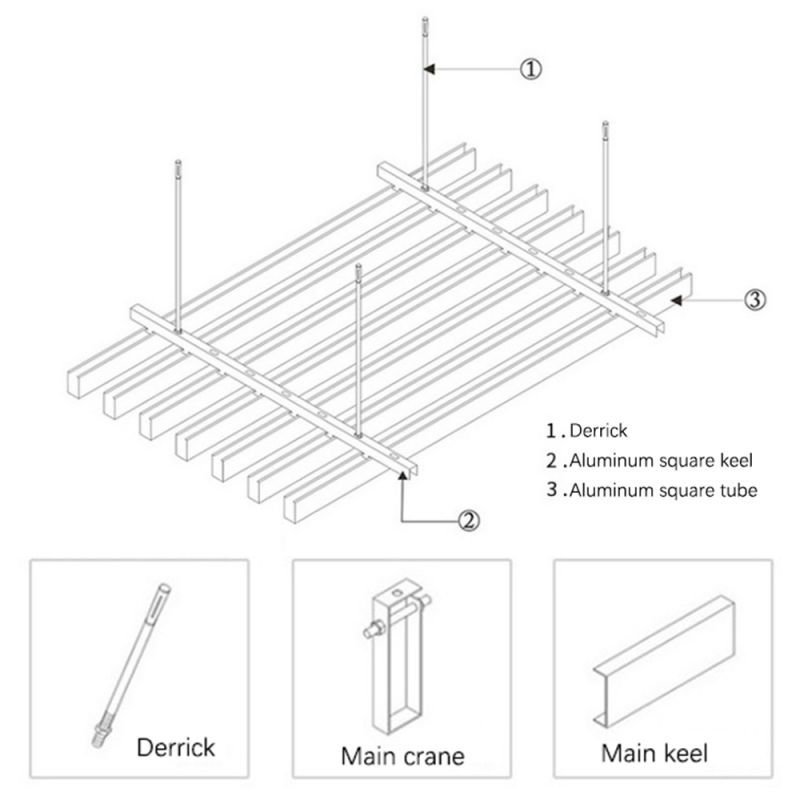

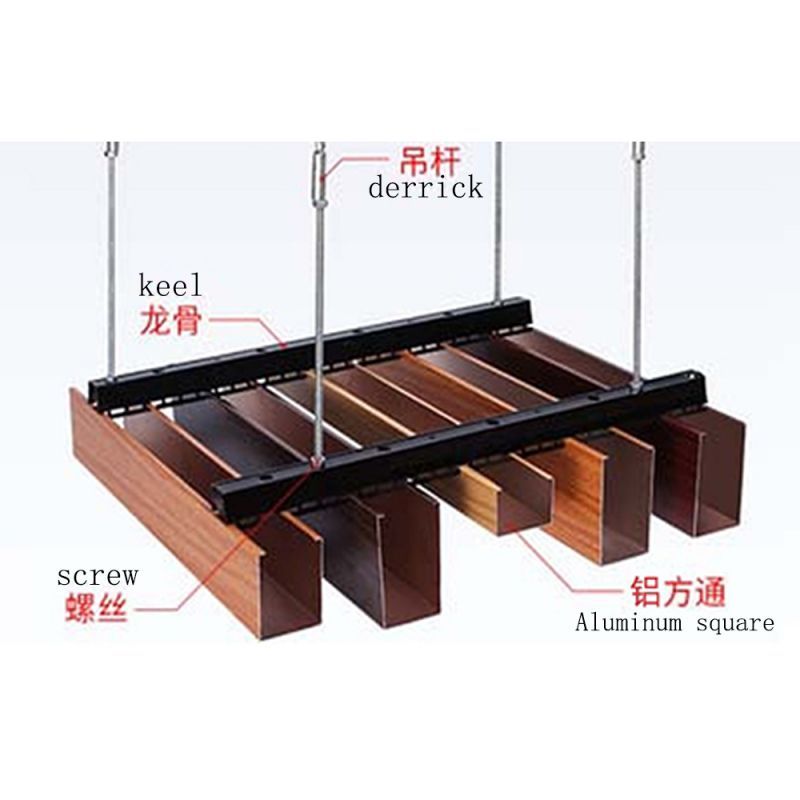

Installation details

1, according to the required horizontal height pull the horizontal line, vertical and vertical need to pull well;

2, according to the appropriate spacing lifting light steel keel (38 or 50 keel), the general spacing 1-1.2 meters, the distance of the boom according to the provisions of the light steel keel distribution;

3, the pre-installed in the keel lifting parts, and Tongfang keel installed in the light steel keel, Fangtong keel spacing - generally 1 meters, must be adjusted to the level after all loading;

4, the aluminum square series in order to buckle on the keel, and then the reverse lock plate pressure, the square end should be maintained 10mm or 20mm distance;
