Specifications for Floating Floors:

• NCC-KIP isolation pad, model KIP-22Q2, 50x50x50mm thick (capable of carrying a weight of 0.44kN)

• 15mm thick perimeter isolation board

• 50mm thick fiberglass/rock wool soundproofing material

• 18mm thick triple plywood or 2mm iron plate

• Isolation pads should have superior characteristics of fire resistance, moisture resistance, corrosion resistance, mold resistance, and bacterial resistance

• 6. At temperatures ranging from -40 ° F to+250 ° F, the isolation pad must effectively maintain isolation and shock resistance performance

Installation of floating floor program:

• Ensure that the work floor is flat, dry, and clean, and all connected walls and curbstones are also in appropriate positions.

• Attach the perimeter isolation board (PIB) to the perimeter or edge stone of the inner wall.

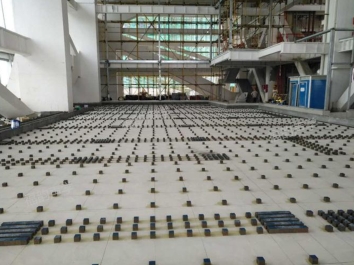

• Mark the orientation line of the isolation pad position on the ground.

• According to the engineering drawings, place the isolation pad in the appropriate position

• The gaps between the sound insulation pads are filled with low-density sound-absorbing materials (fiberglass/rock wool). Place the three layer soil template (three layer board/iron plate) on the isolation pad.

• Connect the joints of the three clay formwork together with a joint board or welding.

• Cover the concrete formwork and surrounding isolation boards with temporary waterproof adhesive tape, and fix them with adhesive tape. This ensures that the concrete will not flow into the joints of the formwork and surrounding isolation boards during construction.

• Inject steel bars and concrete into the formwork.

• Adjust the isolation board to the horizontal position, and finally seal the gap with edge sealant.
