NCC -Weatherproof Louver  For the most diverse applications, large-sized external weather louvers can also be provided. External weather louvers are installed externally as air delivery devices for fresh air and exhaust air in air conditioning systems. They are installed on the exterior wall. Their leaves are arranged very narrow, which can effectively resist the direct entry of rainwater, as well as resist leaves and birds. Under certain unfavorable conditions, such as heavy rain, a small amount of water vapor may enter together depending on the airflow speed. This is why the airflow velocity in the fresh air opening should not exceed 2-2.5 m/s. NCC louvers have been proven to be true strength, withstanding rigorous testing, providing excellent rainproof performance  excellent airflow characteristics。

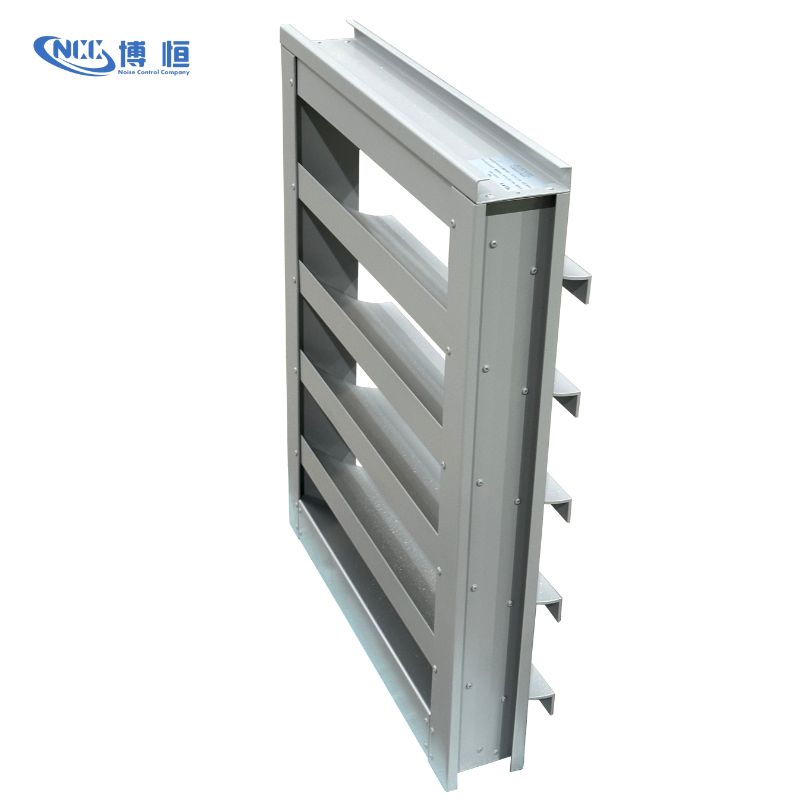

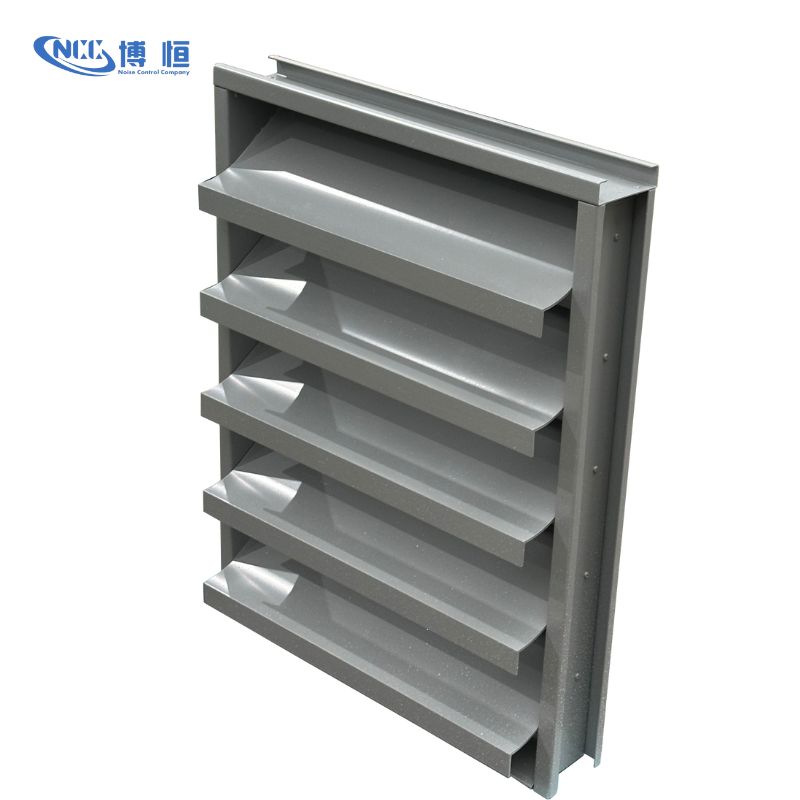

FYL Single layer louver

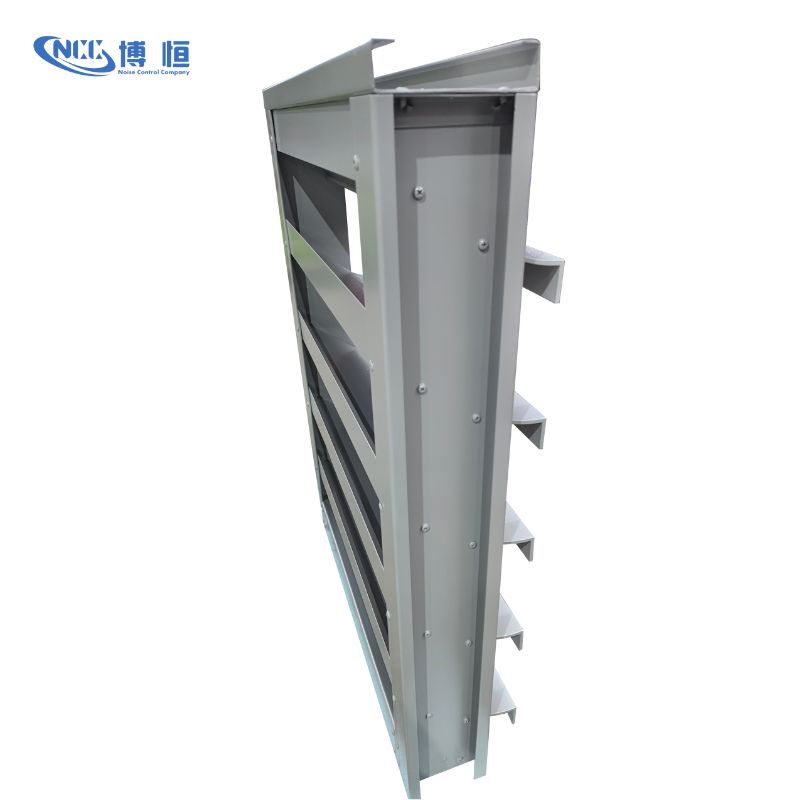

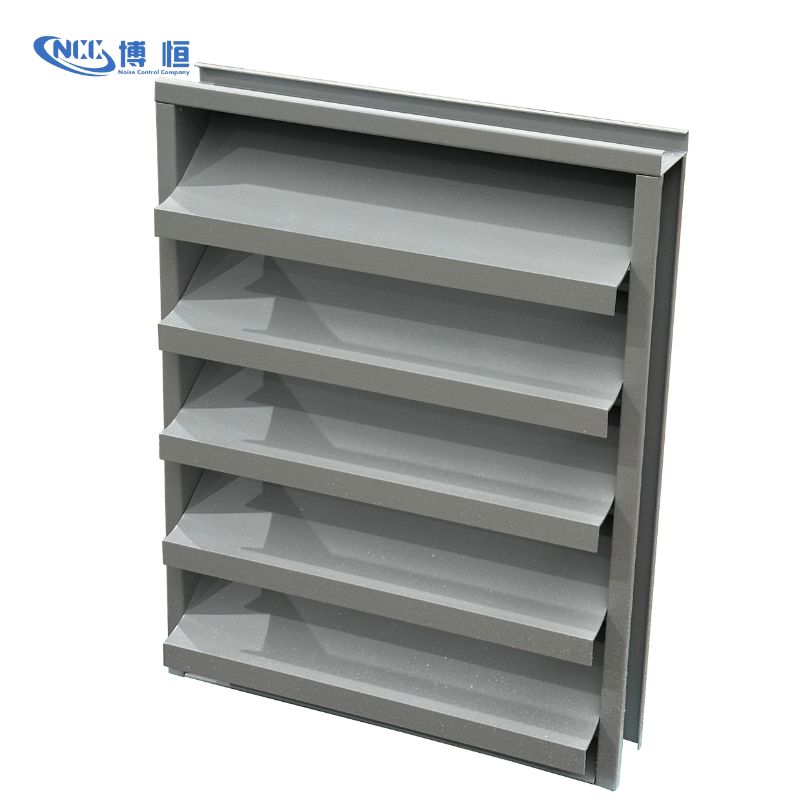

FYL double layer louver

Optional devices and services

• Product design and selection, structural calculation, performance testing, etc

• Installation framework

• Stainless steel bird net

• Powder coating or anodizing

• Installation guidance

• 10 Year Quality Assurance Commitment

• Regular after-sales follow-up

NCC Weatherproof Louver Features

• Maximum width 2400 mm, maximum height 2310 mm

• Low low pressure difference air regeneration noise caused by wing blades

• All aerodynamic data is measured in the aerodynamics and acoustics laboratory

• There are standard sizes and many medium sizes to choose from

• Due to the surrounding boundaries, installation is simple and fast

• Aluminum frame

• Flexible layout for covering large cross-sectional areas

    Weatherproof louver test: Chinese standard test  All of NCC's louver systems have been tested for the export of Chinese products and meet the corresponding standards according to customer requirements.

• NCC Weatherproof Louver Specification Parameter Table

•


•


• The double row shutters FYL155S series are rated A for high rainwater permeability and are rated 2 for airflow rate and airflow class.

• Single row blinds FYL100S, series with good airflow rate and airflow grade of 2.

• NCC rain blinds all have Chinese GB test reports. Free area calculations can be provided based on the size of the shutter segment for each item.
