NCC Acoustics louvers-A complete range of certified, high performance acoustic louvres to solve a wide range of environmental noise pollution problems.The application areas include:

• Mechanical equipment screens and penthouses

• Noise barriers

• Process air intakes

• Cooling tower inlet silencersand

• Fresh air intakes forventilation systems

A   Top sound-absorbing chip, standard height, ensuring smooth ventilation;

B  Galvanized steel frame: Stainless steel, aluminum profiles, and other materials can be selected

C  For middle blade for maximum noise reduction with minimum pressure drop and appearance for superior high frequency performance

D  Inert, thermal insulation, fire-resistant, honeycomb shaped non combustible acoustic filling material, glass fiber cotton, rock wool and other materials are optional

E  Airflow channels, excellent aerodynamic performance, can achieve the lowest pressure loss.

F  The louver installation hole can be designed to meet any size of installation structure, and the operation is fast.

G  Perforated splitter underside for maximum sound absorption Weather stop inhibits rain/snow entry

Other:Bird guards are available in stainless steel, insect screens can also be supplied

The continual success of our products and services over the decades has brought the brand a reputation for quality and reliability among customers, whether they are multinational corporations or independent family businesses. This is supported by the expertise and passion of our workforce, the people behind the products, including designers, engineers and industry specialists,To face the ever increasing noise reduction demands of the future, we will strive to further enhance our ability to reduce excessive noise. We aim to focus on developing tomorrow’s solution today, innovating faster and delivering solutions that meet the requirements of the next generation. In doing so, we will stay true to our key values and founding philosophy to make the world a quieter place.

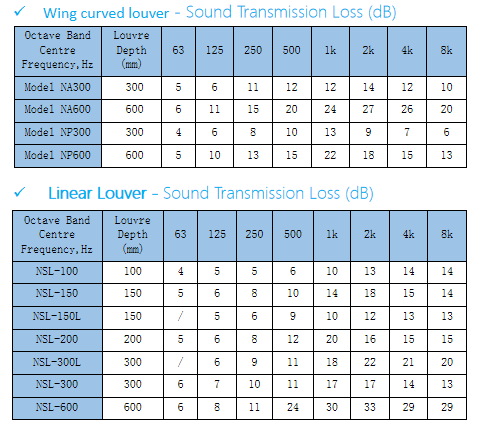

NCC Acoustics louvers Type

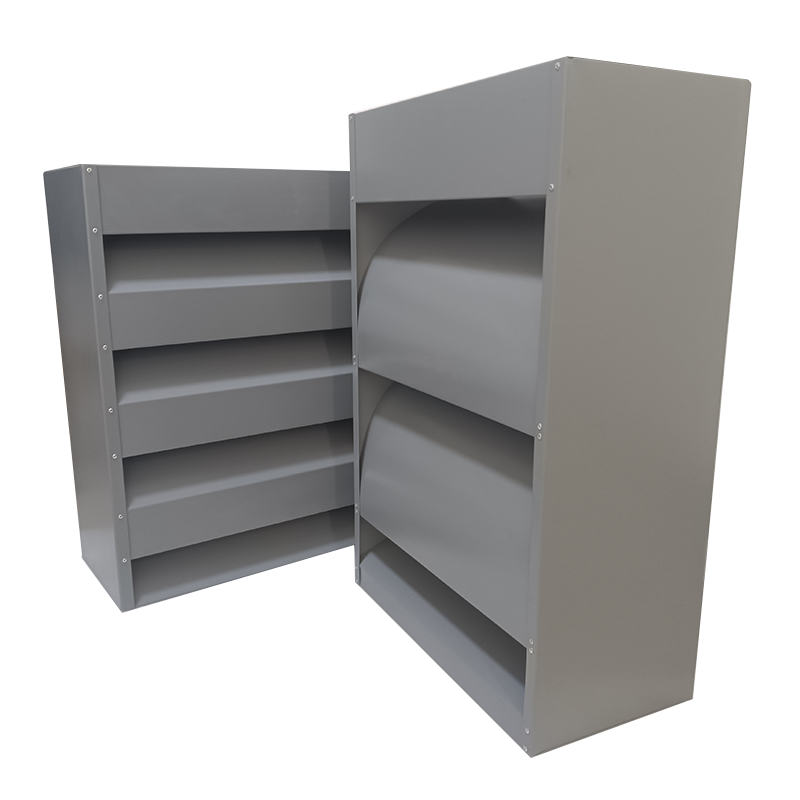

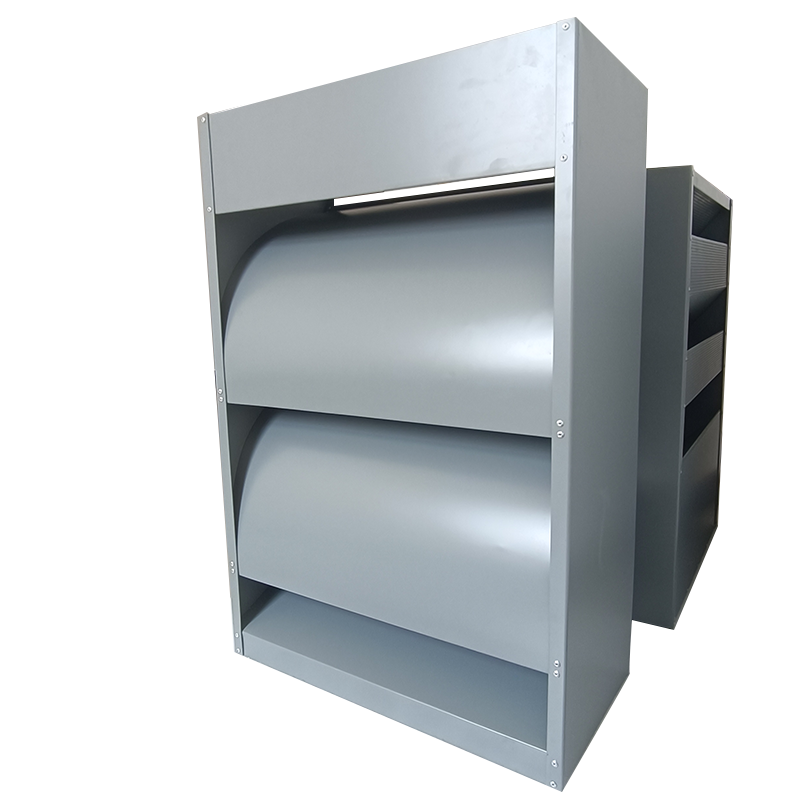

1）Wing curved louver

Model NA300 & Model NP300: 300mm deep

Model NA600 & Model NP600: 600mm deep

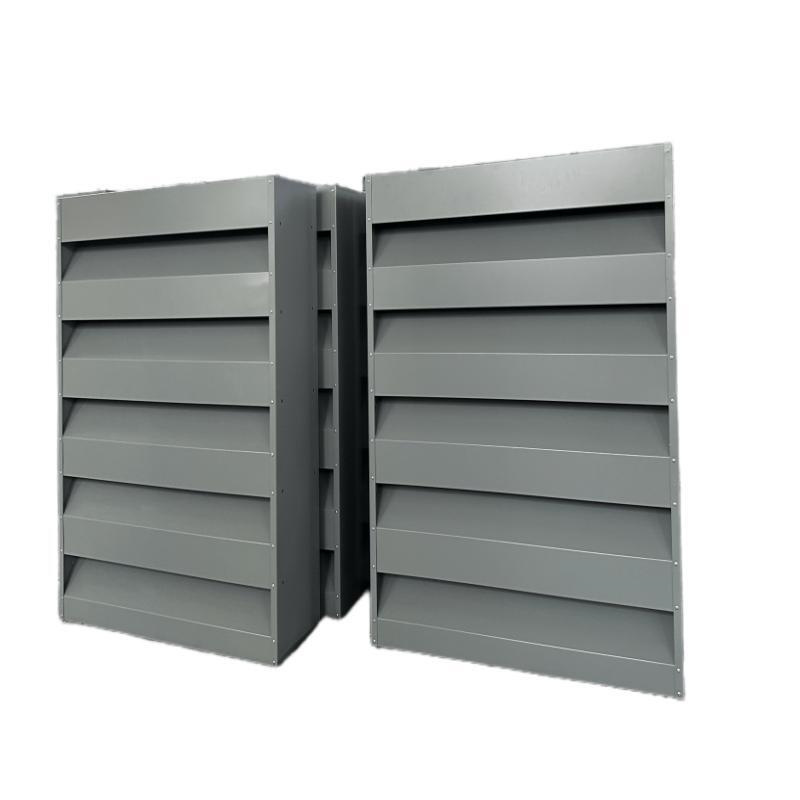

2）Linear louver

NSL-100: 100mm deep

NSL-150(L): 150mm deep

NSL-200: 200mm deep

NSL-300(L): 300mm deep

NSL-600: 600mm deep
